The Business Application Framework in the SEMPER Architecture

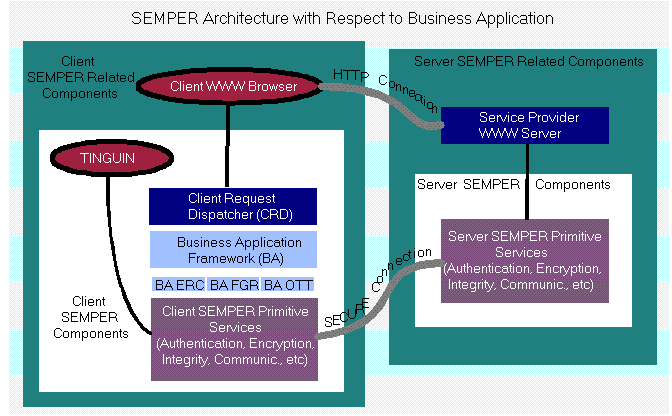

The above figure presents the Business Application Framework with respect
to the SEMPER architecture [SEMPER Deliverable D02].
The Business Application Framework
The Business Application Framework provides the basis
for the specification and realization of customized
Business Applications. It consists of the following components:
- BAFrmWrk Package:
- This package contains the hierarchy of
classes that define the categories of Business
Applications. This hierarchy aims to structure
and organize the extensibility of the system over Business
Applications. Any node of this hierarchy is a class
that encapsulates customized Business Application
services. A specific Business Application
class may contain a specific Authentication, Payment,
etc., realizations out of a set of available ones provided
by the BAService PAckage. For example
the EUROCOM and FOGRA Business
Applications may be defined by extending a business application
that encupsulates Authentication and On Line Payment where
the OTTO Business Application may be defined by extending
a busines application of that encupsulates Authentication
and Invoice Payment.
- BAService Package:
- This package contains the hierarchy of classes
that define categories of SEMPER Services. These classes
provide the means to combine, extent the SEMPER primitive
services as well as create composite ones. For example
there may be provided a service for payment and a service
for payment that authenticates the merchant as well.
- Business Specific BAs:
- This is not a package. Is the set of
Business Application classes of specific companies
(EUROCOM, FOGRA, OTTO, etc) created by extending
the classes offered in the BAFrmWrk Package and/or
using and extending services provided in the
BAService Package.
